Xylophone Flutter Project Study Guide

1. Project Overview

The Xylophone project is a Flutter application that simulates a xylophone instrument. It features:

• A colorful interface resembling xylophone keys
• Audio playback of xylophone notes when keys are tapped
• Utilization of the audioplayers package for sound management
• Implementation of repeated UI elements using Flutter's widget system

2. Key Components Analysis

Breakdown of main.dart file

The main.dart file is structured into two main parts:

1. The main() function, serving as the entry point
2. The XylophoneApp widget and its state class _XylophoneAppState

Entry point explanation

void main() {
  runApp(const XylophoneApp());
}

This simple main() function calls runApp() with an instance of XylophoneApp, initiating the Flutter application.

Main widget structure

The app uses a StatefulWidget called XylophoneApp:

class XylophoneApp extends StatefulWidget {
  const XylophoneApp({super.key});

  @override
  State<XylophoneApp> createState() => _XylophoneAppState();
}

class _XylophoneAppState extends State<XylophoneApp> {
  // State management and build method
}

This structure allows the app to manage its state, particularly for audio playback.

3. Widget Tree Visualization

graph TD
    A[MaterialApp] --> B[Scaffold]
    B --> C[SafeArea]
    C --> D[Column]
    D --> E[Expanded TextButton 1]
    D --> F[Expanded TextButton 2]
    D --> G[Expanded TextButton 3]
    D --> H[Expanded TextButton 4]
    D --> I[Expanded TextButton 5]
    D --> J[Expanded TextButton 6]
    D --> K[Expanded TextButton 7]

4. Key Widgets and Their Purposes

1. MaterialApp: Provides the overall structure and theme for the app.
2. Scaffold: Implements the basic material design layout structure.
3. SafeArea: Ensures the app's content is displayed within the safe area of the device.
4. Column: Arranges the xylophone keys vertically.
5. Expanded: Ensures each key takes up an equal amount of vertical space.
6. TextButton: Represents each xylophone key, handling tap events and visual appearance.

5. State Management

The app uses a StatefulWidget to manage its state, primarily for audio playback:

class _XylophoneAppState extends State<XylophoneApp> {
  late final AudioPlayer _player;

  @override
  void initState() {
    super.initState();
    _player = AudioPlayer();
  }

  @override
  void dispose() {
    _player.dispose();
    super.dispose();
  }

  Future<void> playAudio(int noteNumber) async {
    await _player.play(AssetSource('note$noteNumber.wav'));
  }

  // build method and other widget logic
}

• An AudioPlayer instance is created in initState() and disposed of in dispose().
• The playAudio() method manages the state of audio playback.

6. Styling and Customization

The app uses a simple yet effective styling approach:

• Each xylophone key is represented by a TextButton with a distinct background color.
• Colors are defined in a static list: _colors.
• The Scaffold has a black background for contrast.
• TextButtons are styled with TextButton.styleFrom() to remove default padding and rounded corners.

7. Layout Techniques

The app employs a straightforward layout:

• A Column widget arranges the xylophone keys vertically.
• Each key is wrapped in an Expanded widget to ensure equal vertical distribution.
• CrossAxisAlignment.stretch is used to make each key span the full width of the screen.

8. Asset Management

Assets are declared in the pubspec.yaml file:

flutter:
  uses-material-design: true

  assets:
  - assets/

This configuration includes all files in the assets/ directory as app assets.

Audio files are played using the audioplayers package:

await _player.play(AssetSource('note$noteNumber.wav'));

9. Learning Outcomes

Key Flutter/Dart concepts demonstrated in this project:

1. Stateful Widget implementation
2. Use of external packages (audioplayers)
3. Asset management for audio files
4. Creating reusable widget functions
5. List generation with List.generate()
6. Dart arrow syntax for concise function definitions
7. Basic Flutter app structure and layout techniques

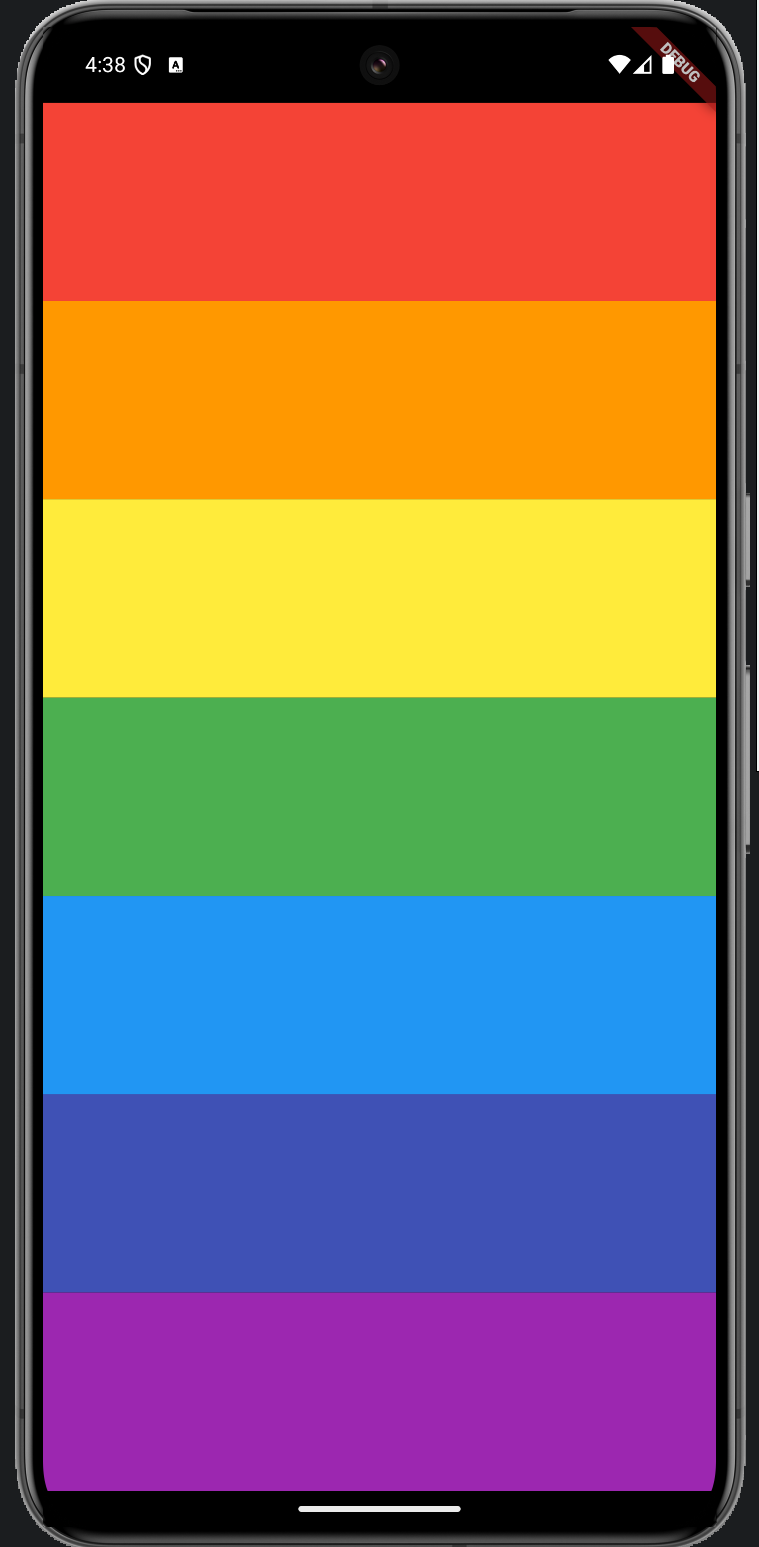

Finished App

10. Exercises to Reinforce Learning

1. Add visual feedback when a key is pressed (e.g., a brief color change or animation).
2. Implement a feature to record and playback a sequence of notes.
3. Add a volume control slider that affects all note playbacks.
4. Create an alternate layout for landscape orientation.
5. Extend the app to include multiple instrument sounds, allowing the user to switch between them.
