Magic 8 Ball Flutter Project Study Guide

1. Project Overview

The Magic 8 Ball project is a simple Flutter application that simulates a magic 8 ball toy. When the user taps the screen, the app displays a random answer image, mimicking the experience of shaking a physical magic 8 ball for answers to yes-or-no questions.

Main features:

• Interactive UI with a single-screen layout
• Random answer generation
• Image-based responses
• Stateful widget implementation for dynamic content

2. Key Components Analysis

Breakdown of main.dart file

The main.dart file contains two main parts:

1. The main() function, which is the entry point of the application
2. The Magic8 widget and its state class _Magic88State

Entry point explanation

void main() {
  runApp(MaterialApp(
    home: Scaffold(
      backgroundColor: Colors.blueGrey,
      appBar: AppBar(
        title: Text(
          'Ask Me Anything',
          style: TextStyle(
            color: Colors.white,
          ),
        ),
        centerTitle: true,
        backgroundColor: Colors.blue,
      ),
      body: Magic8(),
    ),
  ));
}

The main() function calls runApp() with a MaterialApp widget. This sets up the basic structure of the app, including:

• A Scaffold widget for the app's overall layout
• An AppBar with the title "Ask Me Anything"
• The Magic8 widget as the body of the app

Main widget structure

The app uses a StatefulWidget called Magic8:

class Magic8 extends StatefulWidget {
  const Magic8({super.key});

  @override
  State<Magic8> createState() => _Magic88State();
}

class _Magic88State extends State<Magic8> {
  // State management and build method
}

This structure allows the app to maintain and update its state (the current answer number) when the user interacts with it.

3. Widget Tree Visualization

graph TD
    A[MaterialApp] --> B[Scaffold]
    B --> C[AppBar]
    B --> D[Magic8 StatefulWidget]
    D --> E[_Magic88State]
    E --> F[Center]
    F --> G[TextButton]
    G --> H[Image.asset]

4. Key Widgets and Their Purposes

1. MaterialApp: Provides the overall structure and theme for the app.
2. Scaffold: Implements the basic material design layout structure.
3. AppBar: Displays the app title at the top of the screen.
4. Magic8 (StatefulWidget): Manages the state of the magic 8 ball.
5. Center: Aligns its child widget (the 8 ball image) to the center of the screen.
6. TextButton: Detects user taps and triggers the state update.
7. Image.asset: Displays the current 8 ball answer image.

5. State Management

The app uses a StatefulWidget to manage its state:

class _Magic88State extends State<Magic8> {
  int answerNumber = 1;

  void shake8Ball() {
    setState(() {
      answerNumber = Random().nextInt(5) + 1;
    });
  }

  // build method
}

• The answerNumber variable represents the current state.
• The shake8Ball() method updates the state by generating a random number between 1 and 5.
• setState() is called to notify the framework that the state has changed, triggering a rebuild of the UI.

6. Styling and Customization

The app uses a simple styling approach:

• The background color is set to Colors.blueGrey in the Scaffold.
• The AppBar has a blue background and white text.
• The main content (8 ball image) is centered on the screen.

No custom widgets or complex styles are used in this project.

7. Layout Techniques

The app uses a straightforward layout:

• Scaffold provides the overall structure.
• Center widget ensures the 8 ball image is centered on the screen.
• TextButton wraps the image to make the entire area tappable.

8. Asset Management

Assets are declared in the pubspec.yaml file:

flutter:
  uses-material-design: true

  assets:
  - images/

This configuration tells Flutter to include all files in the images/ directory as assets.

In the code, assets are used with the Image.asset() widget:

Image.asset('images/ball$answerNumber.png')

The $answerNumber is interpolated into the asset path to display the correct image based on the current state.

9. Learning Outcomes

Key Flutter/Dart concepts demonstrated in this project:

1. Stateful Widget implementation
2. Basic state management using setState()
3. Random number generation
4. Asset management and usage
5. Event handling with TextButton
6. String interpolation in Dart
7. Basic Flutter app structure (MaterialApp, Scaffold, AppBar)

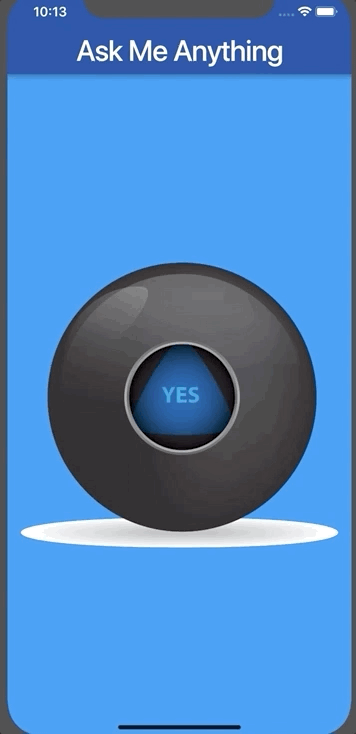

Finished App

10. Exercises to Reinforce Learning

1. Add a text display below the 8 ball image to show a textual representation of the answer.
2. Implement an animation when changing the 8 ball image (e.g., a fade or rotation effect).
3. Add a reset button that sets the 8 ball back to its initial state.
4. Create a custom app theme and apply it to the MaterialApp widget.
5. Implement a counter to track how many times the user has shaken the 8 ball, displaying it in the AppBar.

11. Additional Resources

• Flutter StatefulWidget documentation
• Flutter asset management guide
• Dart Random class documentation
• Flutter layout tutorial
